Wagner Tuning EVO III Competition Intercooler & Charge Pipe Kit | BMW F-Series N55 RWD

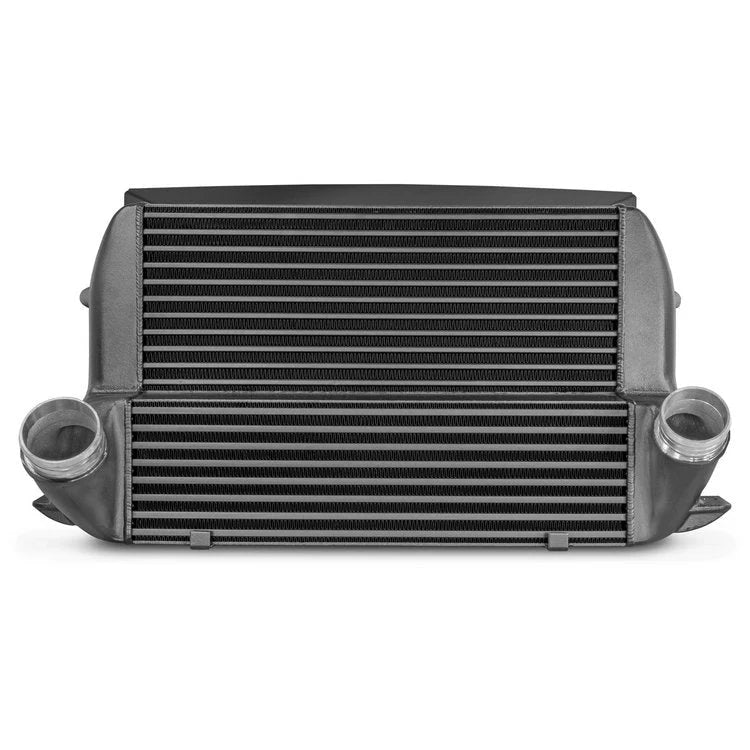

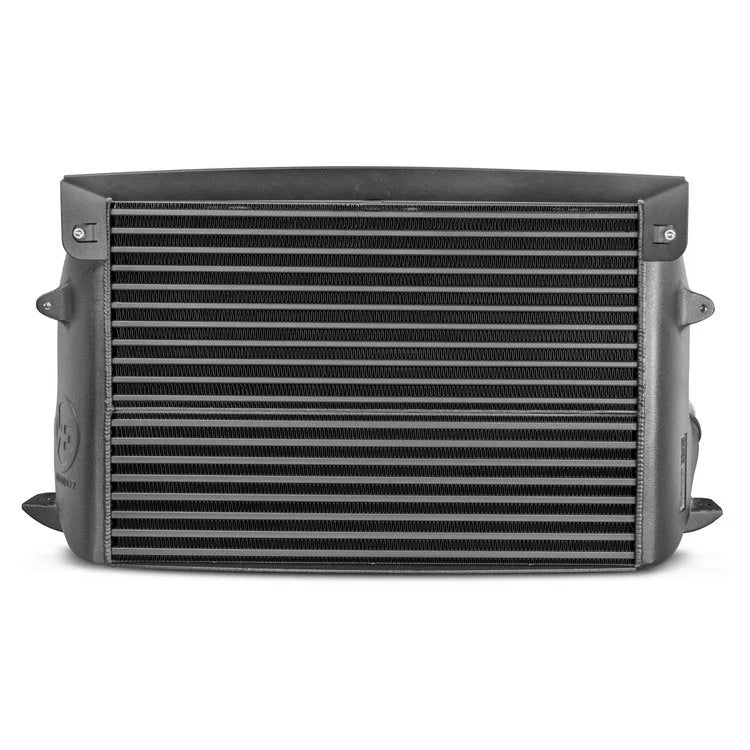

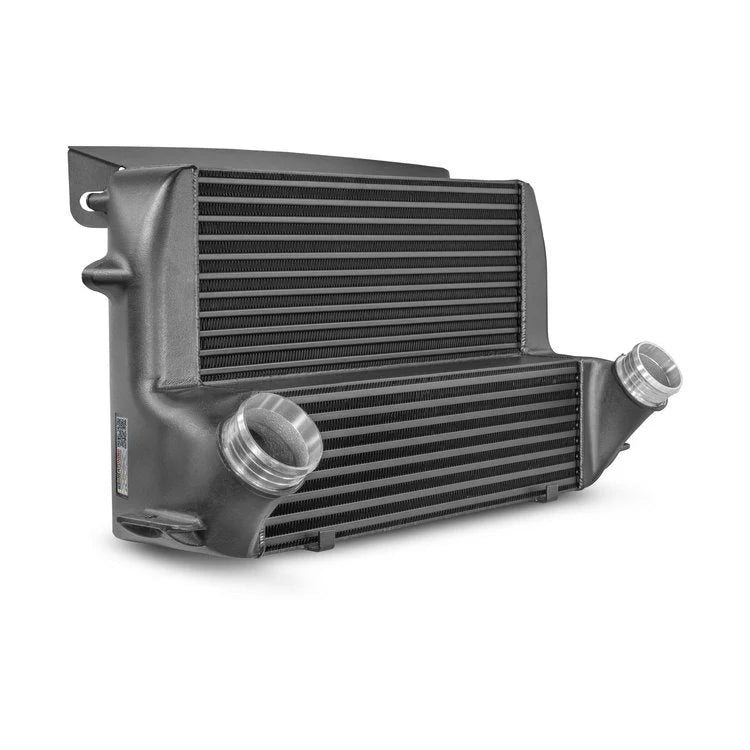

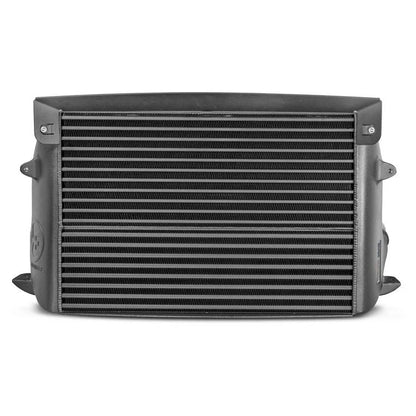

Wagner Tuning EVO III Competition Intercooler & Charge Pipe Kit

BMW F-Series N55 Rear-Wheel-Drive Models

Upgrade the cooling capacity and charge-air flow of your N55-powered BMW with the Wagner Tuning EVO III Competition Intercooler and Charge Pipe Kit.

Designed for high-power street and racing applications, this system features an oversized stepped intercooler core measuring 510 mm × 345 mm × 180 mm. Compared with the original intercooler, it provides approximately 165% more frontal flow area and 223% more charge-air volume.

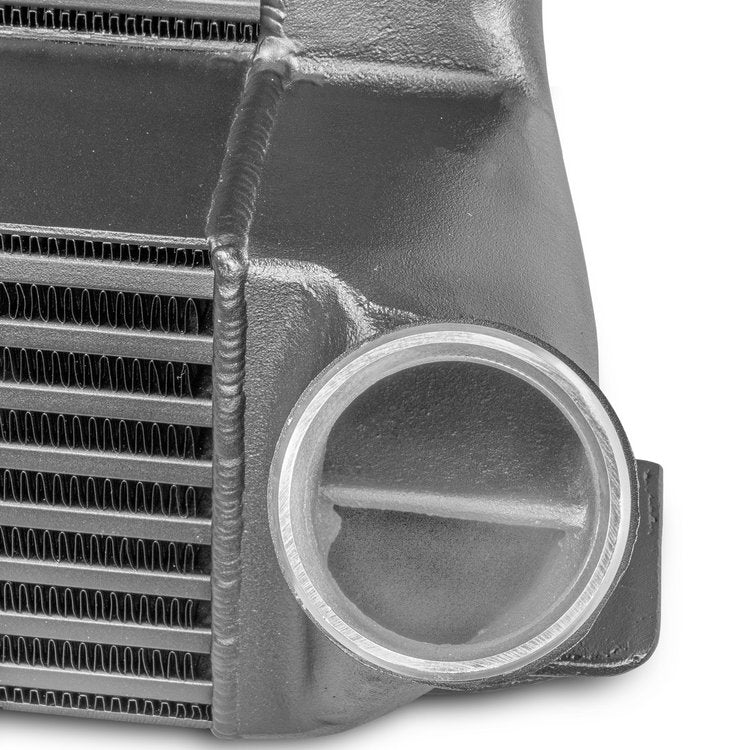

The Competition intercooler core uses internal turbulators to support efficient heat transfer and consistent cooling under demanding conditions. CAD-designed cast-aluminum end tanks are optimized through CFD airflow analysis to provide strong cooling performance while minimizing back pressure.

The EVO III system replaces the restrictive factory click connections and increases the connection diameters to 65 mm at the inlet and 76 mm at the outlet. Reinforced silicone hoses and a 76 mm aluminum charge pipe are included to create a complete high-flow charge-air upgrade.

A thermally conductive anti-corrosion coating helps protect the intercooler from environmental exposure while supporting long-term heat-transfer performance. The system has been pressure tested for stability up to 6 bar.

Due to the intercooler’s substantially increased size, minor modification to the radiator support may be required during installation.

Product Features

• Wagner Tuning EVO III Competition intercooler kit
• Designed for high-output N55 applications
• Approximately 165% greater frontal flow area than the factory intercooler
• Approximately 223% more charge-air volume
• Oversized stepped Competition intercooler core
• Internal turbulators for improved cooling efficiency
• CAD-designed cast-aluminum end tanks
• CFD-optimized airflow and reduced back pressure
• Enlarged 65 mm inlet and 76 mm outlet connections
• Includes 76 mm aluminum charge pipe
• Includes reinforced silicone hoses
• Thermally conductive anti-corrosion coating
• Pressure stable up to 6 bar
• Helps reduce intake-air temperatures and heat soak
• Supports improved power consistency under demanding use
• Complete installation kit included
• Designed for rear-wheel-drive models only

Intercooler Core Specifications

Factory Intercooler

• Dimensions: 510 mm × 130 mm × 110 mm
• Volume: 7.3 liters
• Frontal area: 663 cm²

Wagner Tuning EVO III Intercooler

• Dimensions: 510 mm × 345 mm × 180 mm, stepped
• Volume: 23.56 liters
• Frontal area: 1,759.5 cm²
• Total weight: approximately 13.8 kg

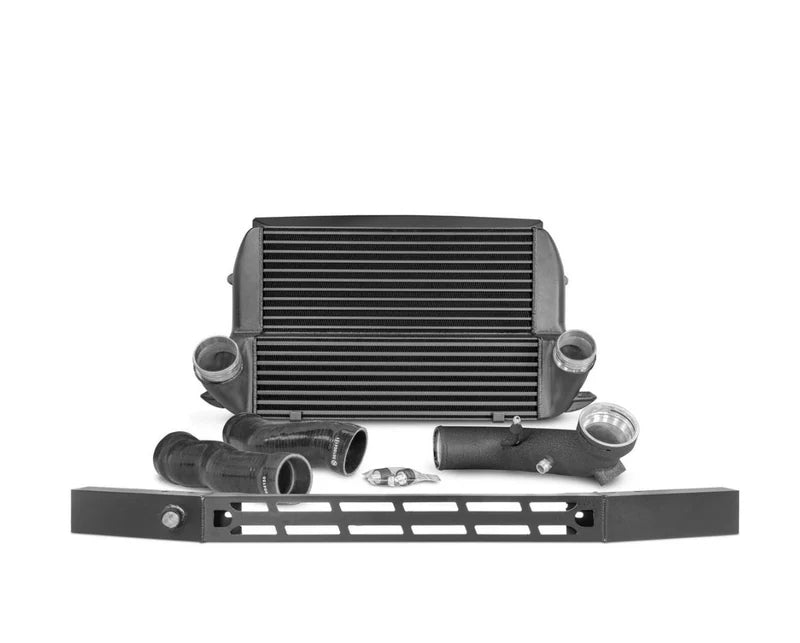

Kit Includes

• One EVO III Competition intercooler
• One 76 mm aluminum charge-air pipe
• One external air duct
• Two reinforced silicone hoses
• One aluminum adapter
• One replacement crossbar
• Required mounting hardware
• Manufacturer assembly instructions

Vehicle Fitment

• BMW M135i F20/F21 — 2011–2016
• BMW M235i F22 — 2014–2016
• BMW M2 F87 N55 — 2015–2018
• BMW 335i F30/F31/F34/F35 — 2012–2015
• BMW 435i F32/F36 — 2013–2016

Important: This kit is for rear-wheel-drive vehicles only. It is not compatible with xDrive models.

Manufacturer Part Number

200001183

Availability

Available to Order

Contact Uproar Customs for current availability and estimated lead time.

Installation

Professional installation is strongly recommended. Minor adjustments to the radiator support may be required because of the intercooler’s increased size. Uproar Customs does not provide technical support for self-installation.
